Apexgaming AN-650M

  • Built to deliver 80 PLUS Gold efficiency, the AN 80PLUS Gold Fully Modular series comes with capacities ranging from 650W to 850W, and the application of 140mm silent Fan, <±3% tight voltage regulation, high quality 105°C/221°F main capacitors and premium components. Its near-silent operation, reliable performance are making itself one of the best values for basic system upgrades.

80 PLUS Gold Certified and
Intel All Generation Processors Ready

  • Apexgaming AN series saves energy through its high
    efficiency up to 90% and is certified to 80 PLUS® Gold.

  • AN series has been optimized to work with all generations of
    Intel’s processors to achieve maximum energy saving.

Ultra Quiet 140mm Low-Speed Fan

  • Featuring a 140mm silent and low-speed fan to keep friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation.

Low Ripple Noise

  • The maximum ripple noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.

<±3% Strict Voltage Regulation

  • The voltage regulation of the PSU is set to no more than ±3% for major output rails to meet the highest performance. The strict voltage regulation is better than Intel’s ATX standard ±5% for major rails and ±10% for -12V.

Advanced Power Supply Design

  • AN 80PLUS Gold Fully Modular series has been implemented power supply design feature. All PCBA are connected by a copper plate without cables connection. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.

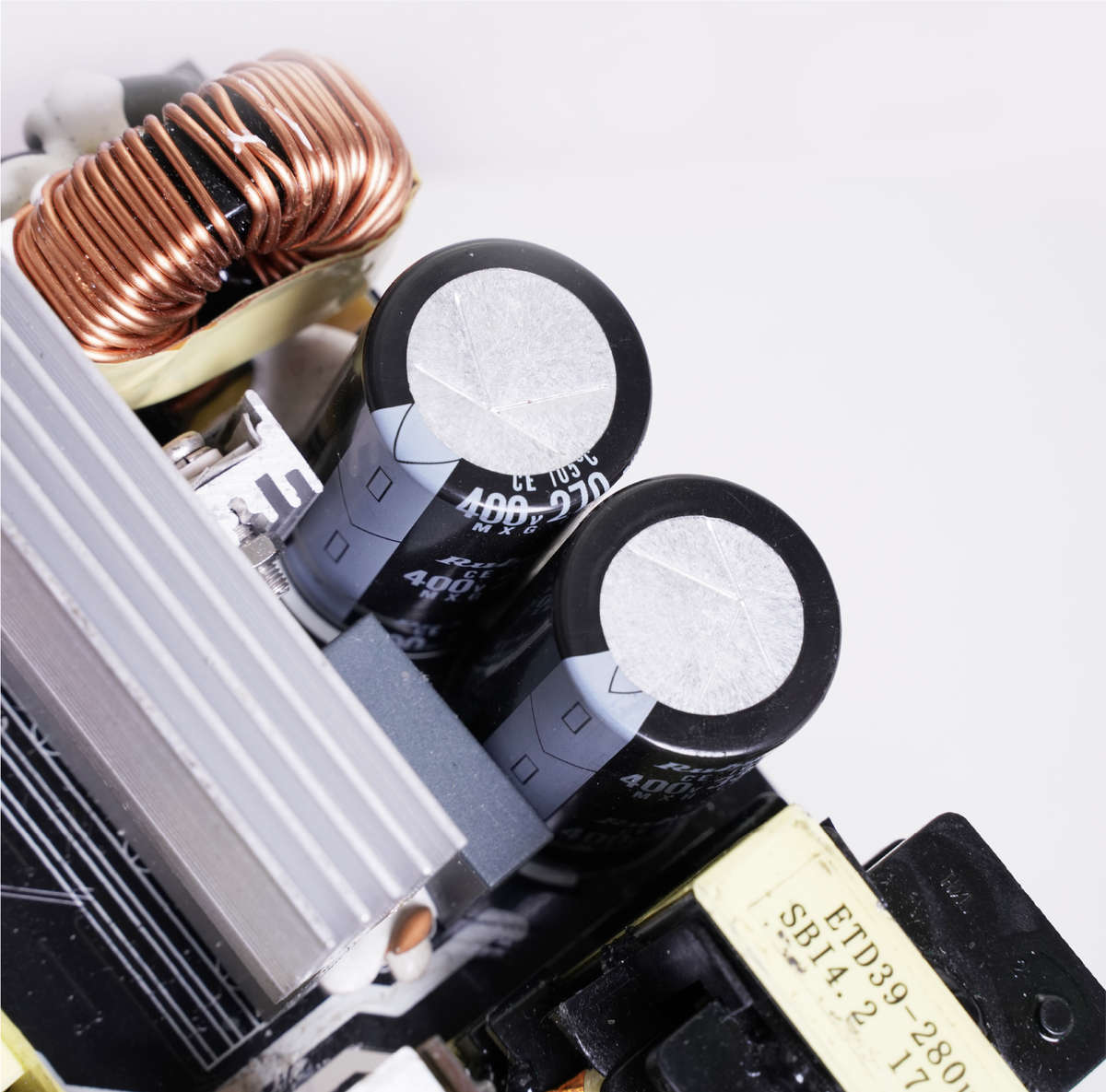

High Quality 105°C/221°F
Electrolytic Capacitors

  • Comes with high quality 105 °C (221 ° F) all electrolytic capacitors to greatly improve the durability and offer the highest stability and reliability

High Technology
Power Solution Design

  • By using high technology LLC Control IC and SR IC from Monolithic Power Systems (MPS), they achieve zero switching loss for high efficiency and low standby power consumption.

High Amperage Single +12V Rail &
DC to DC Design

  • Powerful single +12V rail and 5V/3.3V DC to DC design ensure a stable and reliable supply to the PC system and other PC components.

AN-650M
Continuous Power: 650W
80 Plus Certification: Gold
ATX12V Version: 2.4
EPS12V Version: 2.92
Technology: LLC+D2D
MTBF: 100,000 Hours
Fan Size: 140mm
Fan Type: Sleeve
ErP 2013 lot6 compliant: Yes

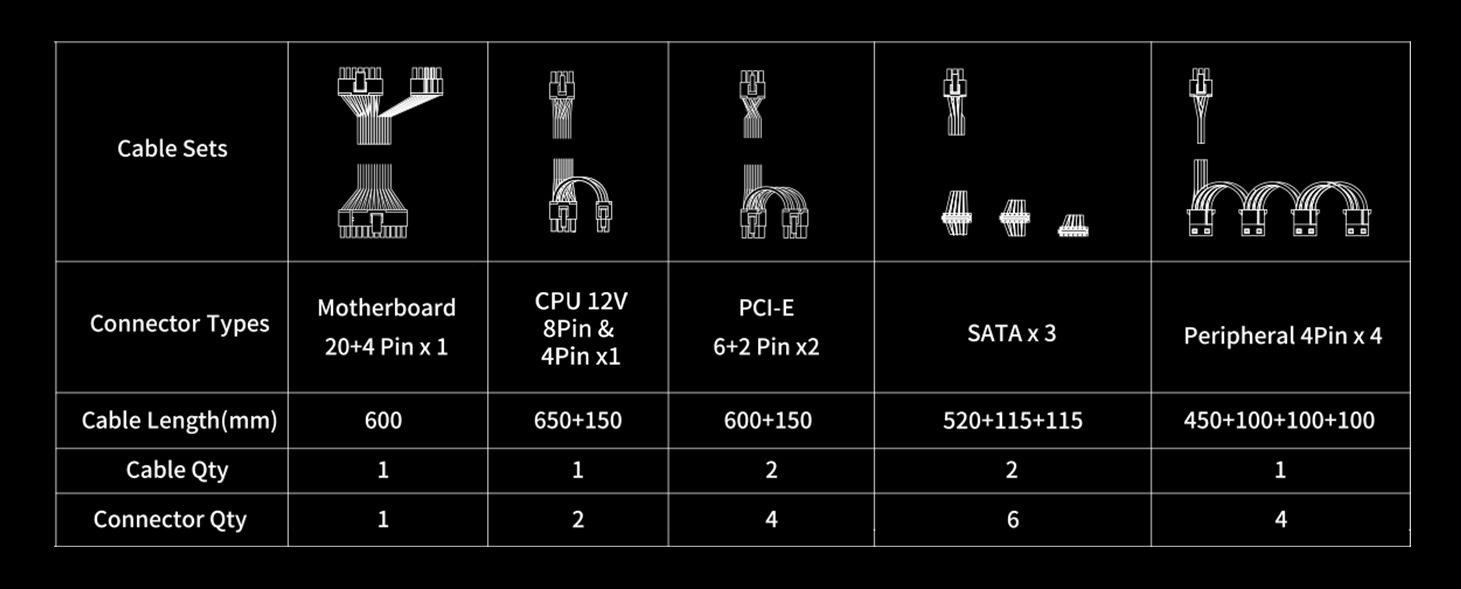

Fully Modular Cable Design
Multi-GPU Ready
Dimensions: 160x150x86mm
AC Input Specification
Input Voltage: 100-240Vac
Input Current: 8-4A
Input Frequency: 47-63Hz
Power Factor >0.95 at typical
Intel C6/C7 Sleep State Compatible
Hold-up Time: >16 ms @ 80% load
DC Output Specification
Ability to Toggle Single/Multiple +12V:
Single+12V: 54A
+12V total power: 648W
+3.3V: 20A
+5V: 20A
+3.3V & +5V Combined Power: 120W
+5Vsb: 3A
-12V: 0.5A
