Cable & Connector
Apexgaming AG Fully Modular Series

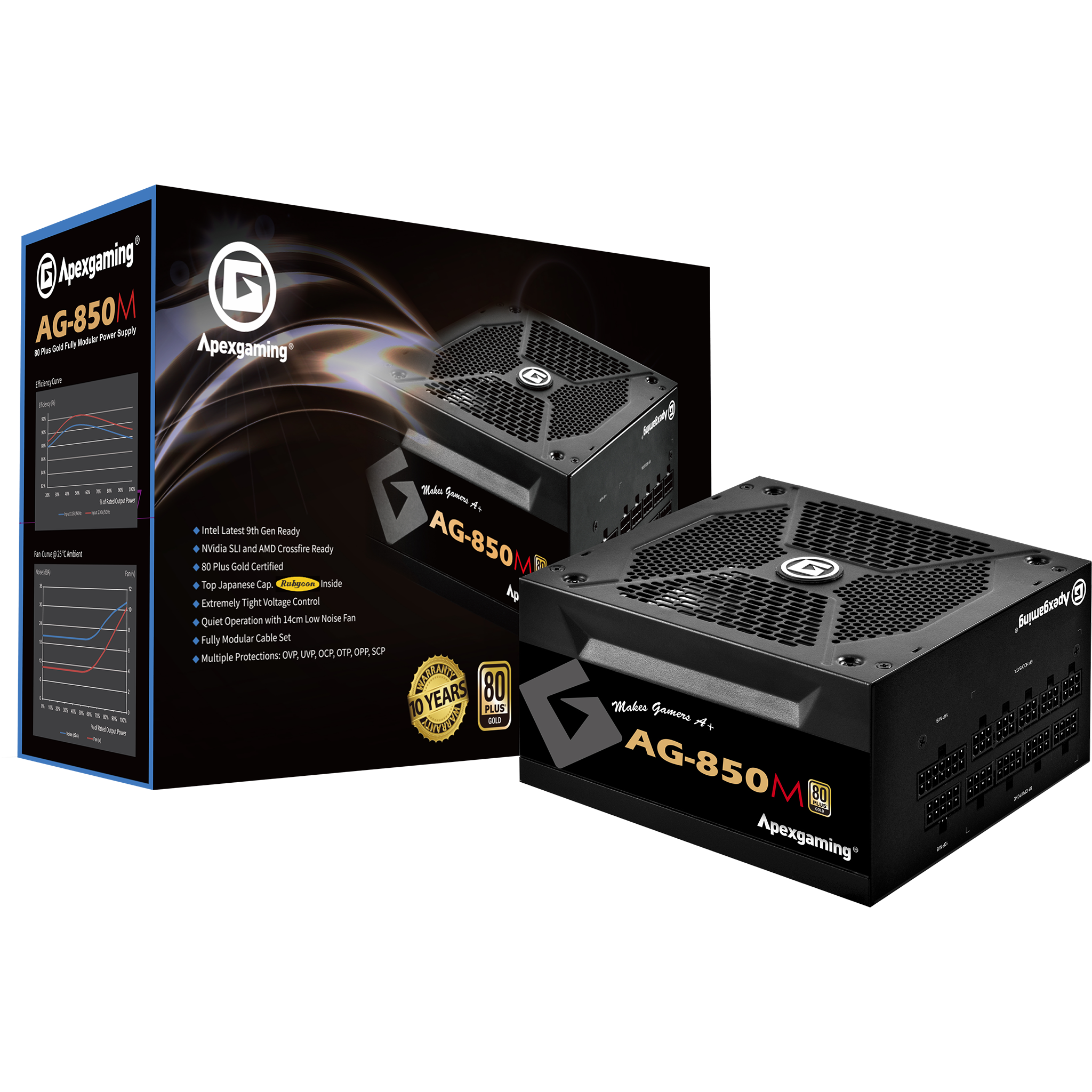

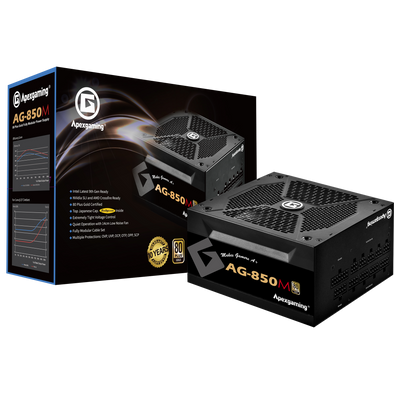

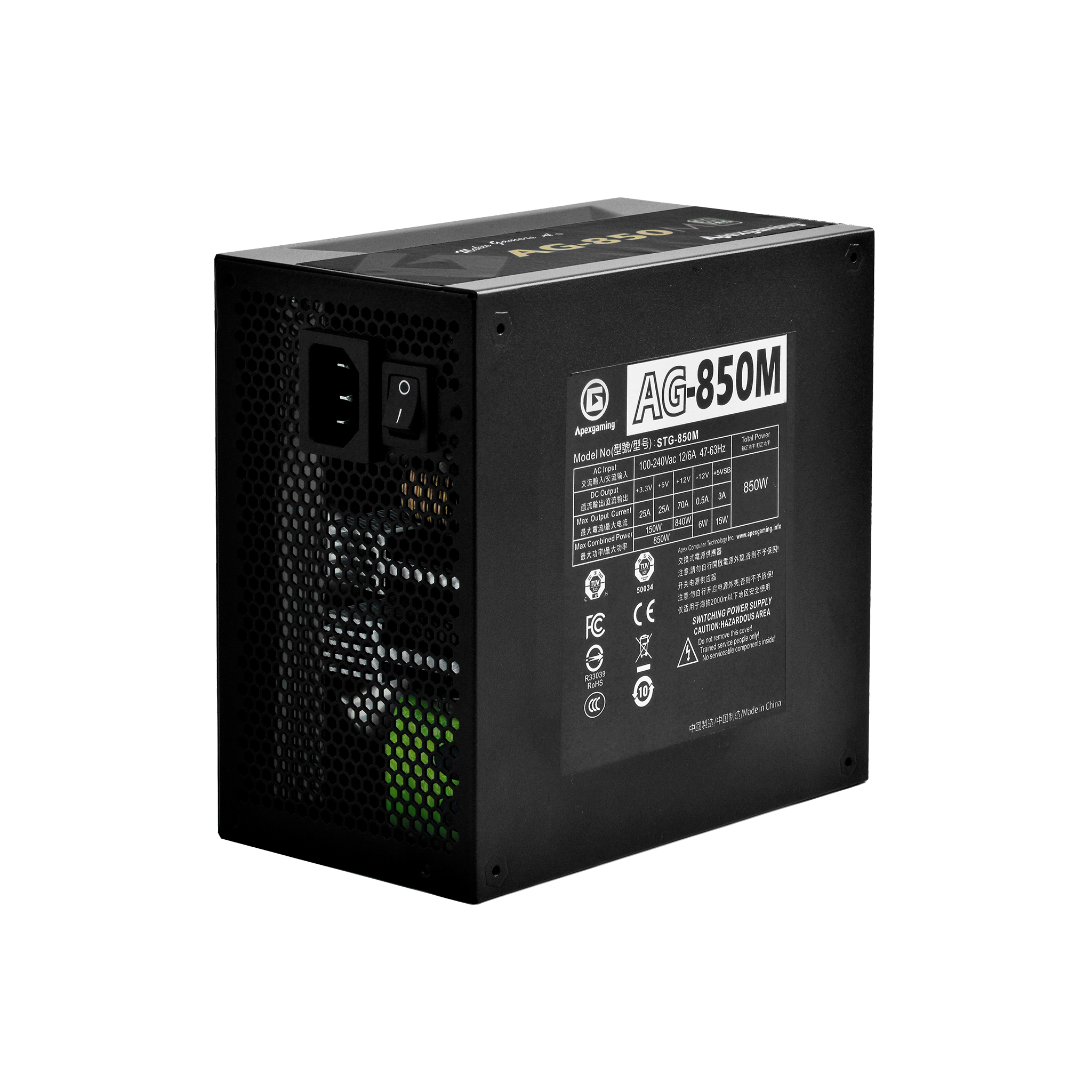

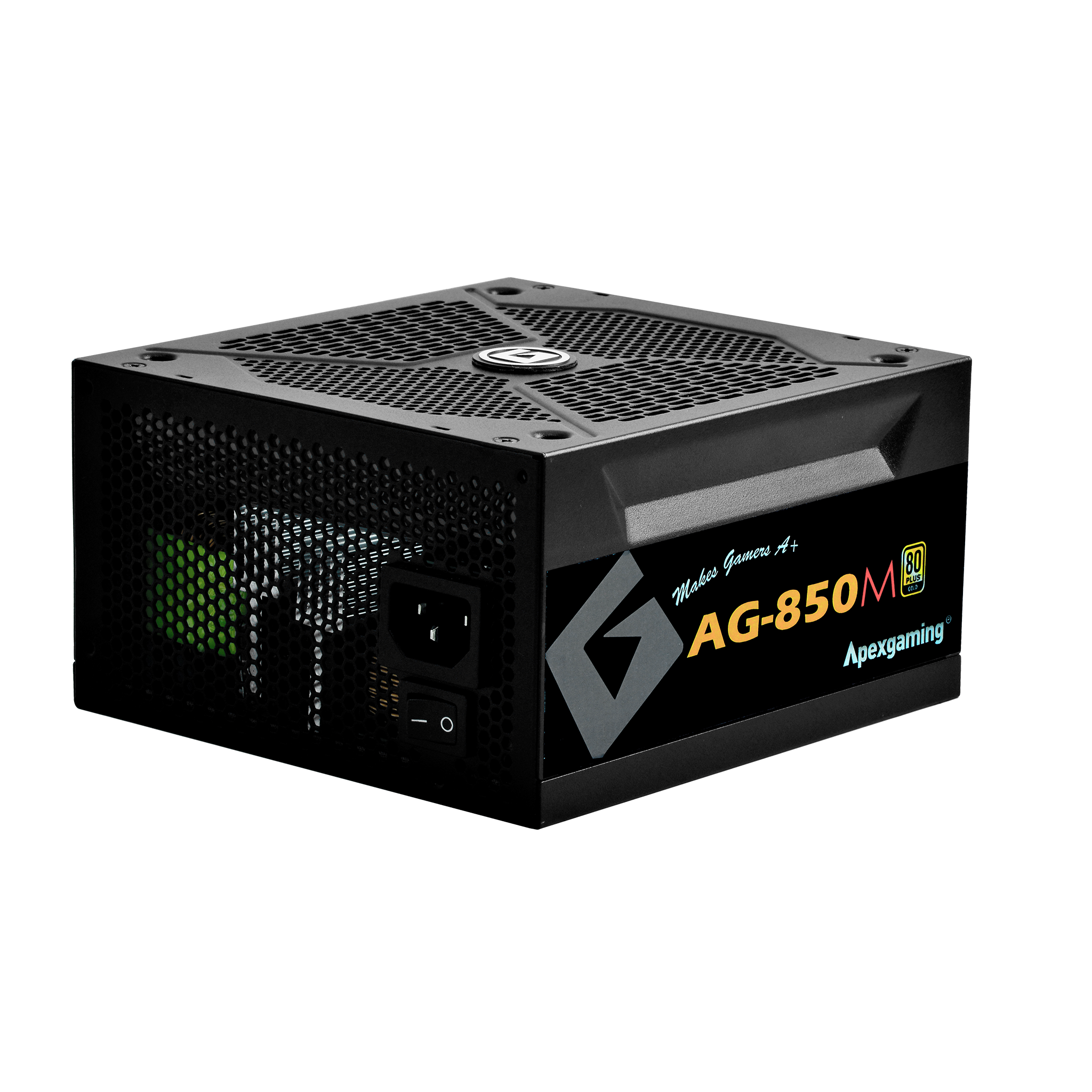

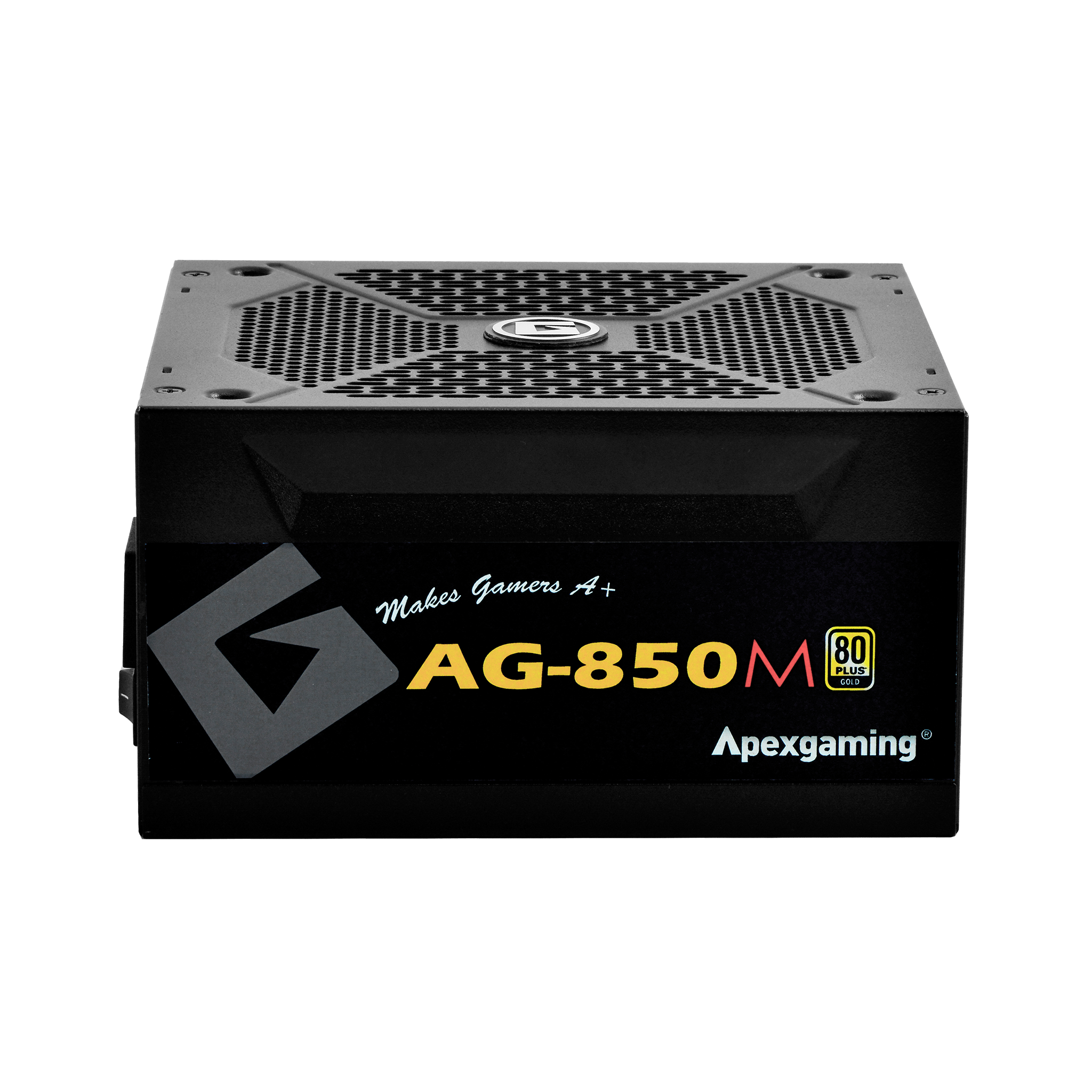

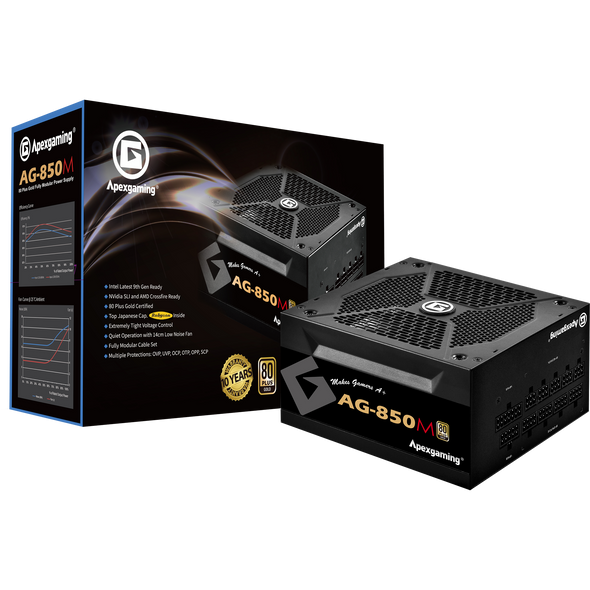

AG-850M
Continuous Power (W): 850
80 Plus Certification: Gold
ATX12V Version: 2.4
PES12V Version: 2.92
Technology: LLC+D2D
MTBF: 500K/hrs
Warranty: 10/yrs

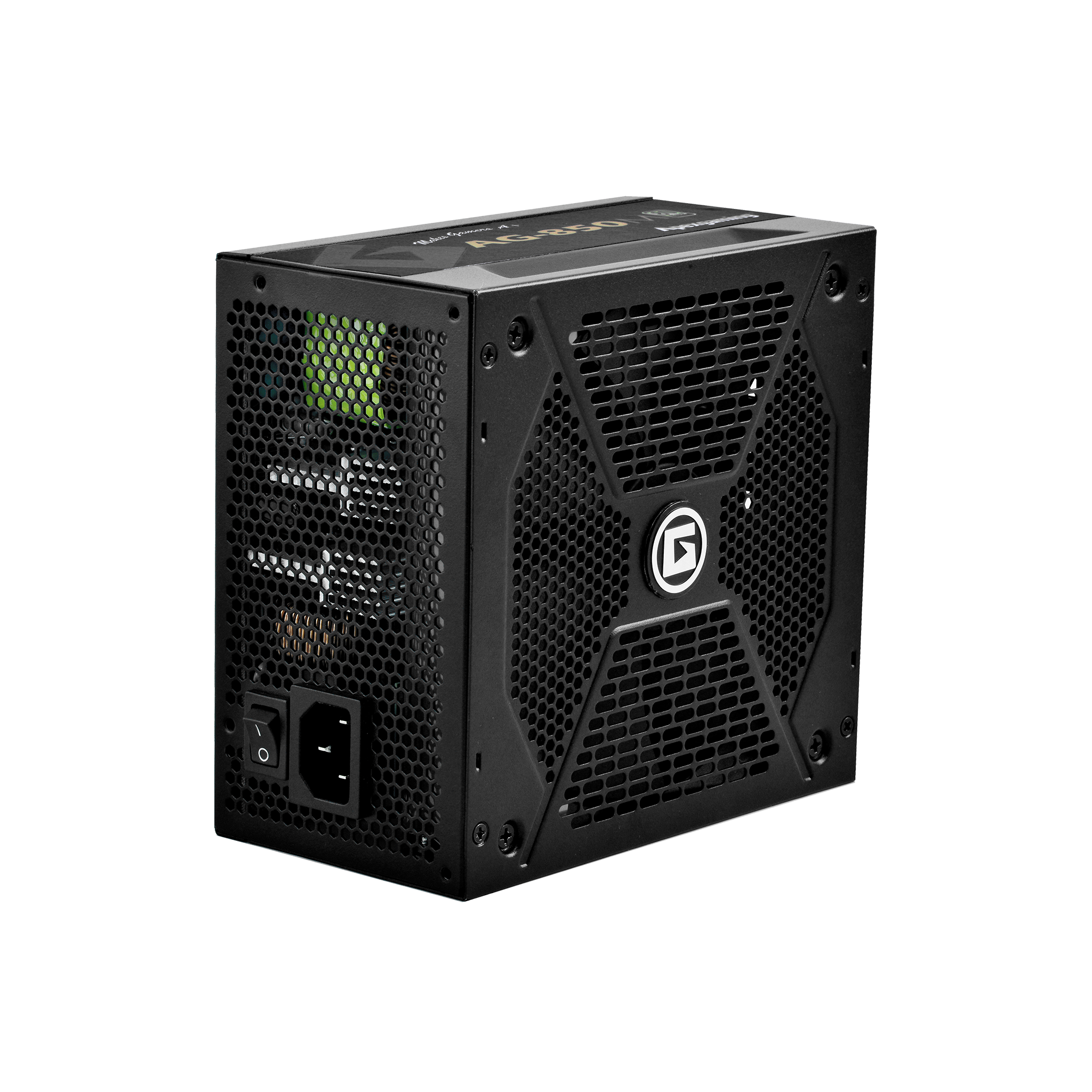

Fan Size: 140mm
Fan Type: Sleeve
Energy Start: 6

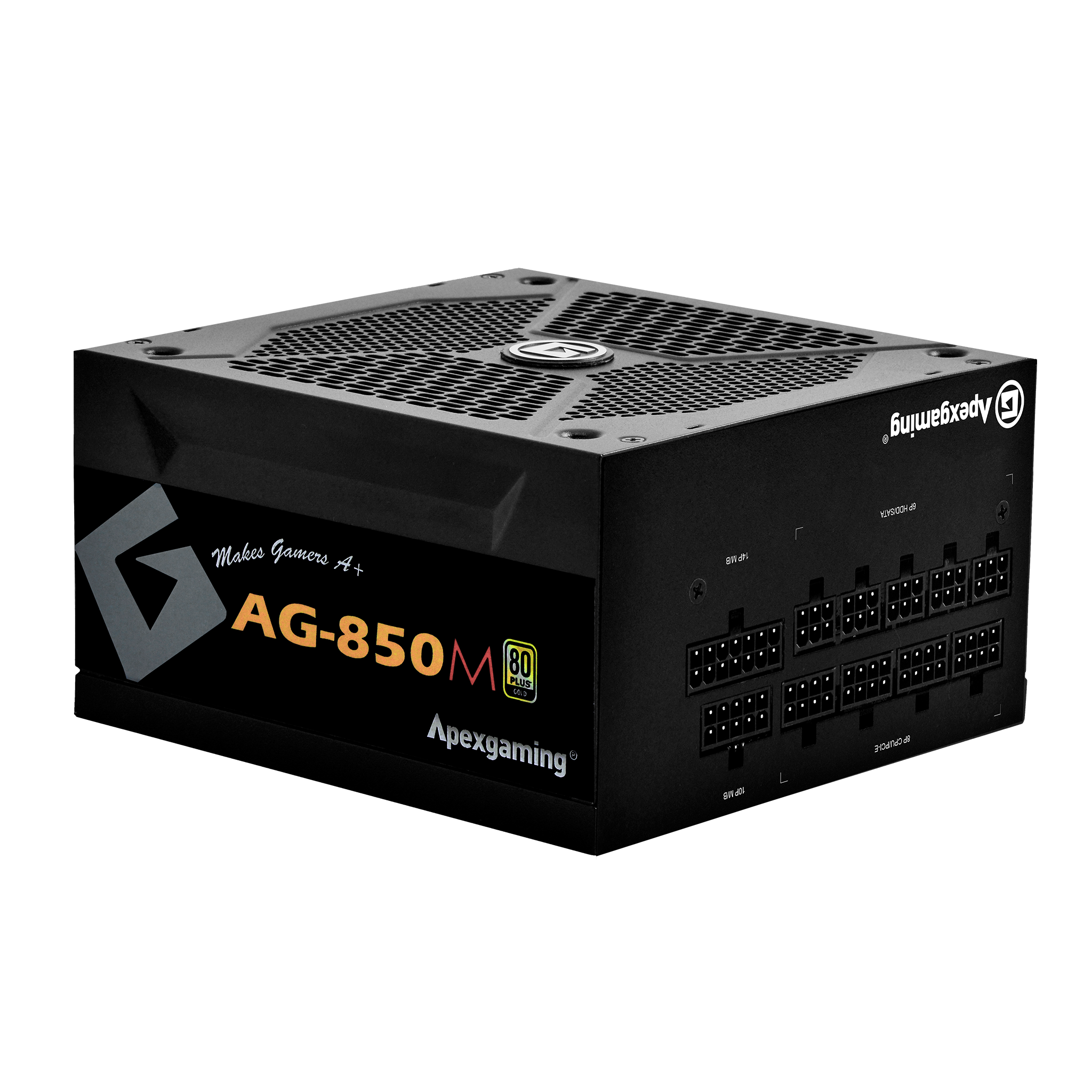

Fully Modular Cable Management
Multi-GPU Ready
Dimensions: 160x150x86mm
N.W.: 2.3kg / G.W.: 2.6kg
80 Plus Certification: Gold
ATX12V Version: 2.4
PES12V Version: 2.92
Technology: LLC+D2D
MTBF: 500K/hrs
Warranty: 10/yrs
Fan Size: 140mm
Fan Type: Sleeve
Energy Start: 6
Fully Modular Cable Management
Multi-GPU Ready
Dimensions: 160x150x86mm
N.W.: 2.3kg / G.W.: 2.6kg
AC Input Specification
Input Voltage: 100 - 240V
Input Current: 12 - 6A
Input Frequency: 47 - 63HzHz
PFC: Active PFC ( >0.95 typical)
Power Factor at 100% Load: 0.99
Intel C6/C7 Sleep State Compatible
Hold-up Time: 16 ms @ 80% load
Input Current: 12 - 6A
Input Frequency: 47 - 63HzHz
PFC: Active PFC ( >0.95 typical)
Power Factor at 100% Load: 0.99
Intel C6/C7 Sleep State Compatible
Hold-up Time: 16 ms @ 80% load
DC Input Specification
Ability to Toggle Single/Multiple +12V: Single
+12V (A): 70A
+12V (W): 840W
+3.3V (A): 25A
+5V (A): 25A
Max. Combined Power 3.3V + 5V (W): 150W
+5Vsb (A): 3A
-12V (A): 0.5A
+12V (A): 70A
+12V (W): 840W
+3.3V (A): 25A
+5V (A): 25A
Max. Combined Power 3.3V + 5V (W): 150W
+5Vsb (A): 3A
-12V (A): 0.5A
