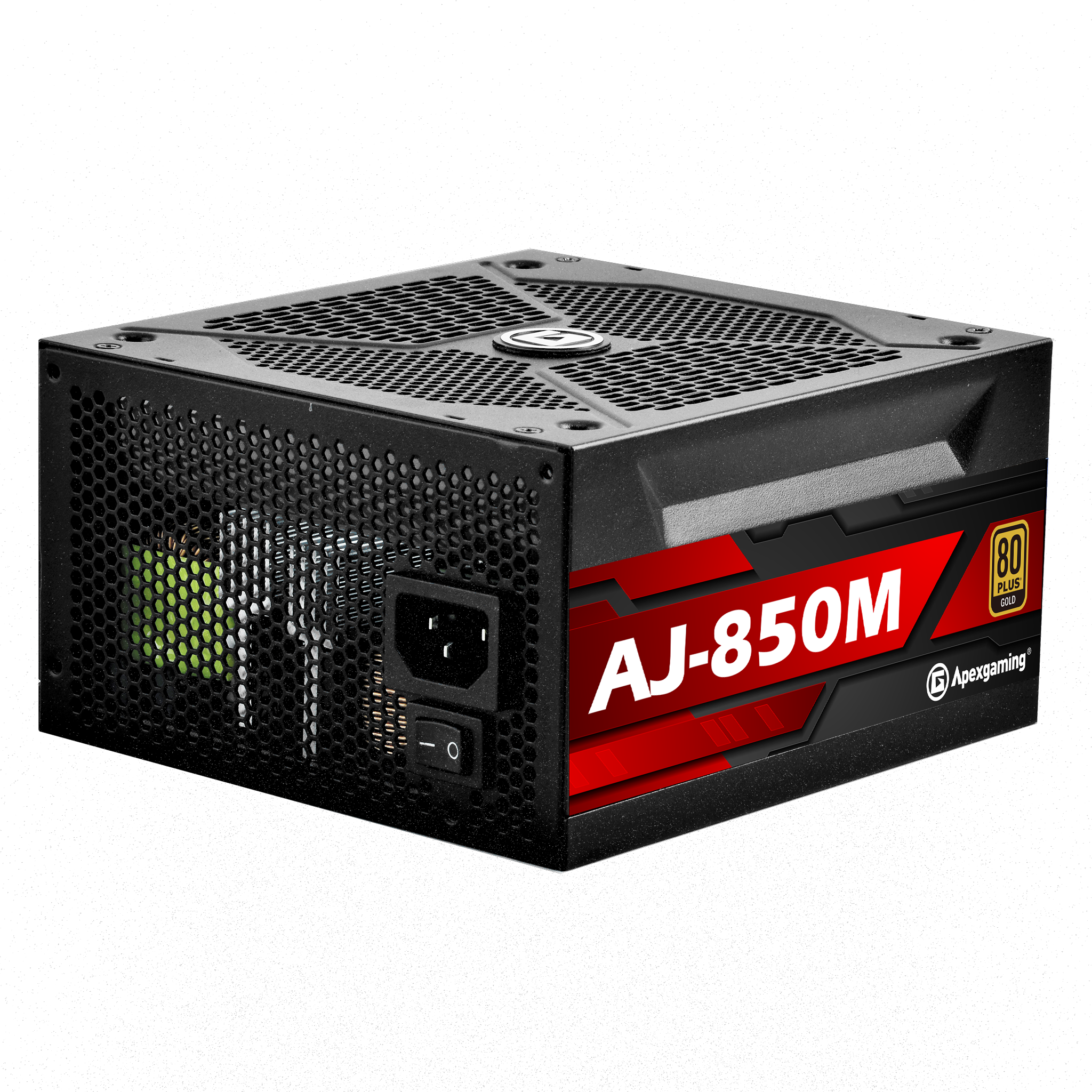

AJ-850M
Continuous Power:
850W
850W
80 Plus Certification: Gold
ATX12V Version: 2.4
EPS12V Version: 2.92
Technology: LLC+D2D
MTBF: 100,000 Hours
Fan Size: 140mm
Fan Type: Two Ball
ErP 2013 lot6 compliant: Yes
Fully Modular Cable Design
Multi-GPU Ready
Dimensions: 160x150x86mm
AC Input Specification
Input Voltage: 100-240Vac
Input Current: 12-6A
Input Frequency: 47-63Hz
Power Factor >0.95 at typical
Intel C6/C7 Sleep State Compatible
Hold-up Time: >16 ms @ 80% load
Input Current: 12-6A
Input Frequency: 47-63Hz
Power Factor >0.95 at typical
Intel C6/C7 Sleep State Compatible
Hold-up Time: >16 ms @ 80% load
DC Output Specification
Ability to Toggle Single/Multiple +12V:
Single+12V: 70A
+12V total power: 840W
+3.3V: 25A
+5V: 25A
+3.3V & +5V Combined Power: 125W
+5Vsb: 3A
-12V: 0.5A
Single+12V: 70A
+12V total power: 840W
+3.3V: 25A
+5V: 25A
+3.3V & +5V Combined Power: 125W
+5Vsb: 3A
-12V: 0.5A
