Apexgaming SF series

  • Apexgaming SF series is SFX form factor, built to deliver 80 PLUS Bronze efficiency, the SF series comes with capacities ranging from 300W to 350W, and the application of 80mm silent fan, high quality main capacitors and component. Its reliable and stable output performance provides a safe and reliable power output to your gaming system.

80 PLUS Bronze Certified and
latest Intel 10th gen processors Ready

  • Apexgaming SF series save energy through its high efficiency up to 85% and is certified to 80 PLUS® Bronze.
  • The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

Apexgaming Silent Tecnology

  • Featuring a temperature sensitive 80mm silent fan to keep friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation.

Low Ripple Noise

  • The maximum ripple noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, to operate reliably for longer.

<±3% Strict Voltage Regulation

  • The voltage regulation of the PSU is set to no more than ±3% for major output rails to meet the highest performance. The strict voltage regulation is better than Intel’s ATX standard ±5% for major rails and ±10% for -12V.

Steady Power Supply Design

  • SF series has been implemented power supply design by Active PFC and DC-DC topology. This steady power supply design scheme can improve power quality and reliability, and can also provide stable power output.

Powerful single +12V rail design

  • SF series has powerful single +12V rail, intelligent distribution of power requirements, support most system requirement.

SFX Form Factor

  • Apexgaming SF Series is designed to the SFX power supply specification for small gaming systems. Furthermore, it comes with an SFX to ATX adapter bracket so it can be used with any case.

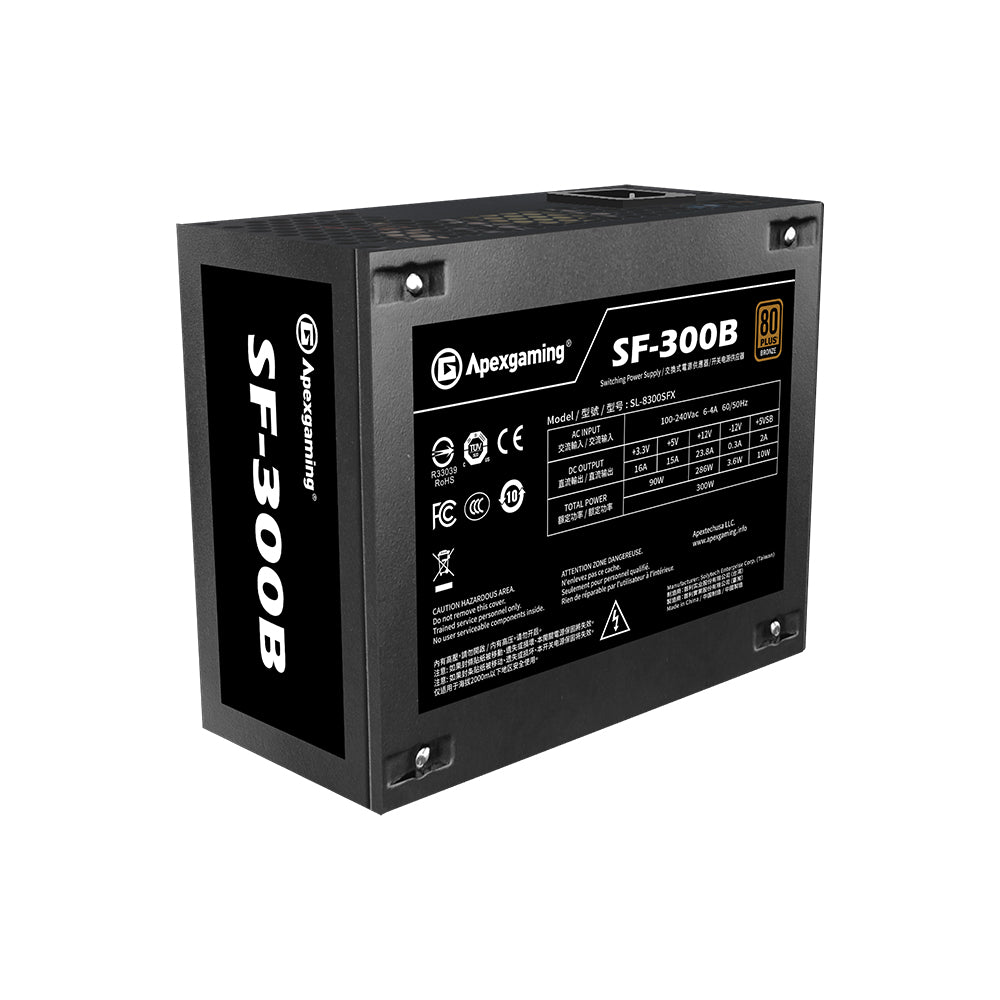

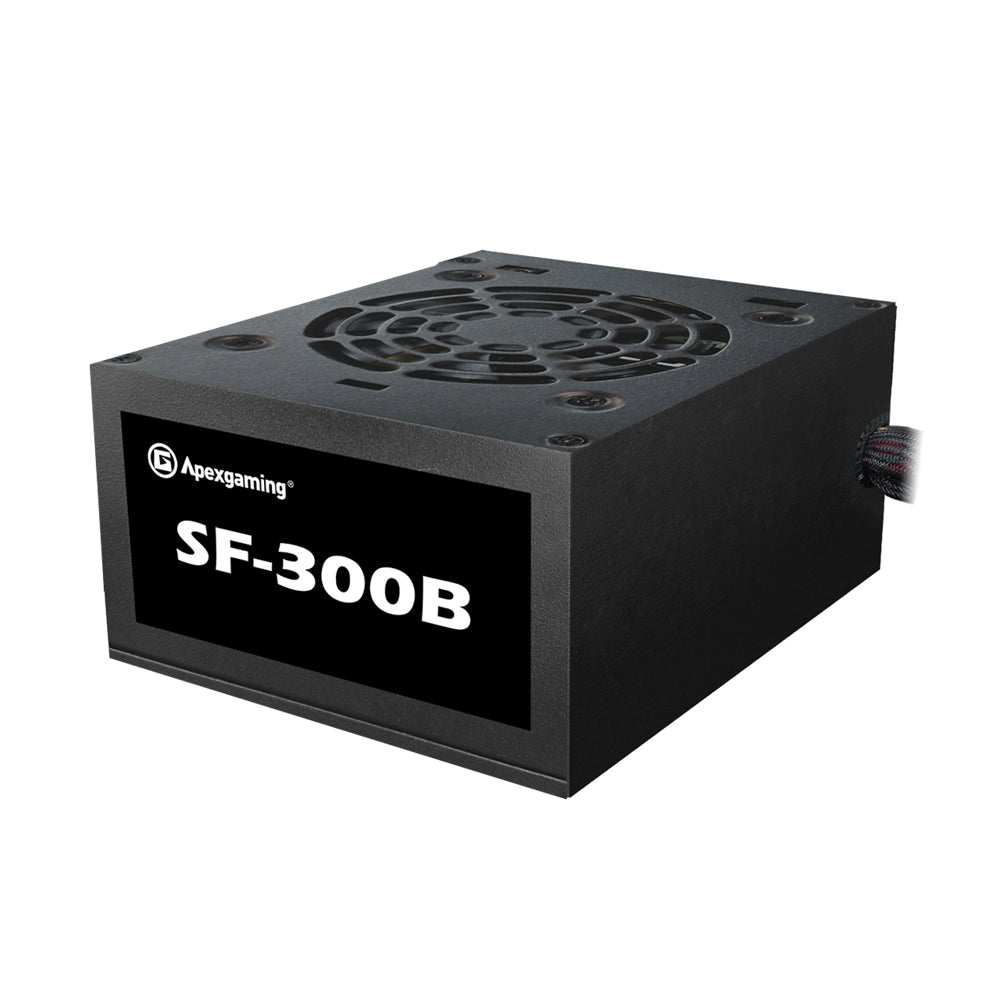

SF-300B
Model: SL-8300SFX
Continuous Power: 300W
80 Plus Certification: Bronze
ATX12V Version: 2.4
EPS12V Version: 2.92
Technology: Actice PFC and DC to DC
MTBF: 100,000 Hours

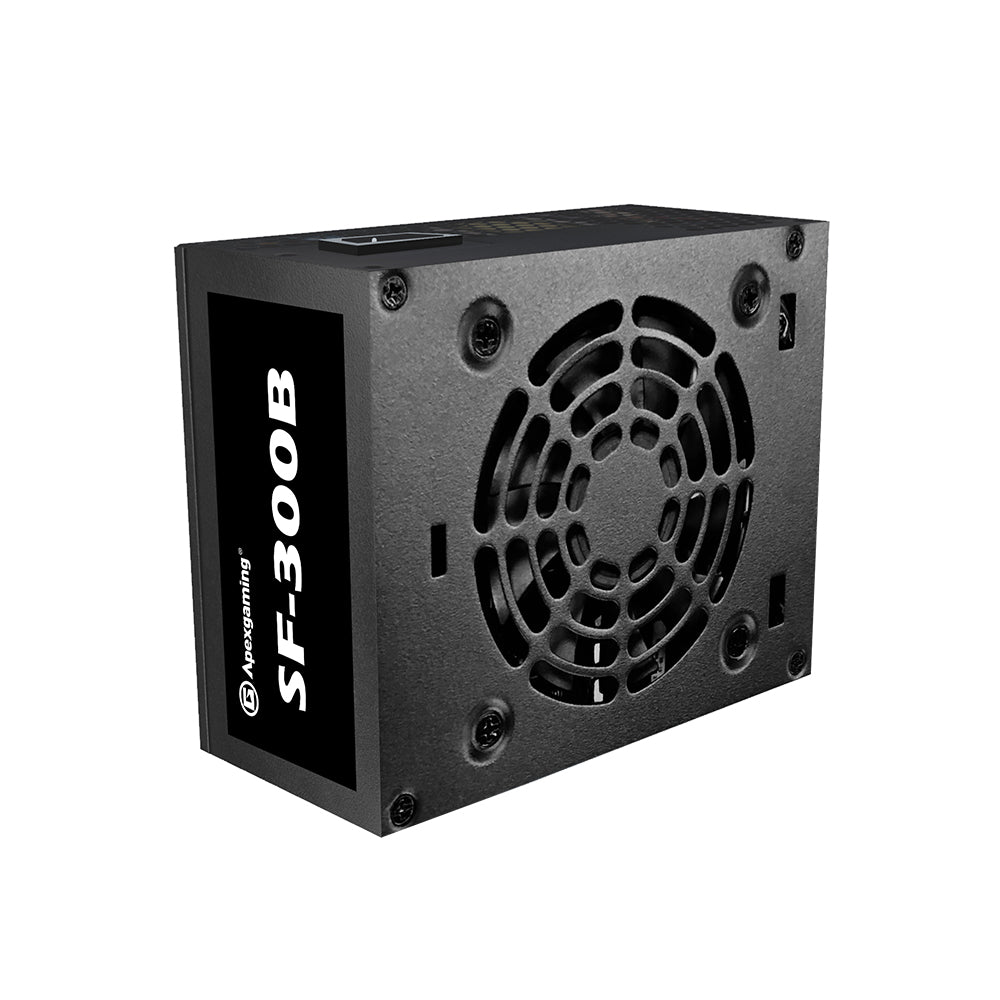

Fan Size: 80mm
Fan Type: Sleeve
ErP 2013 lot6 compliant: Yes

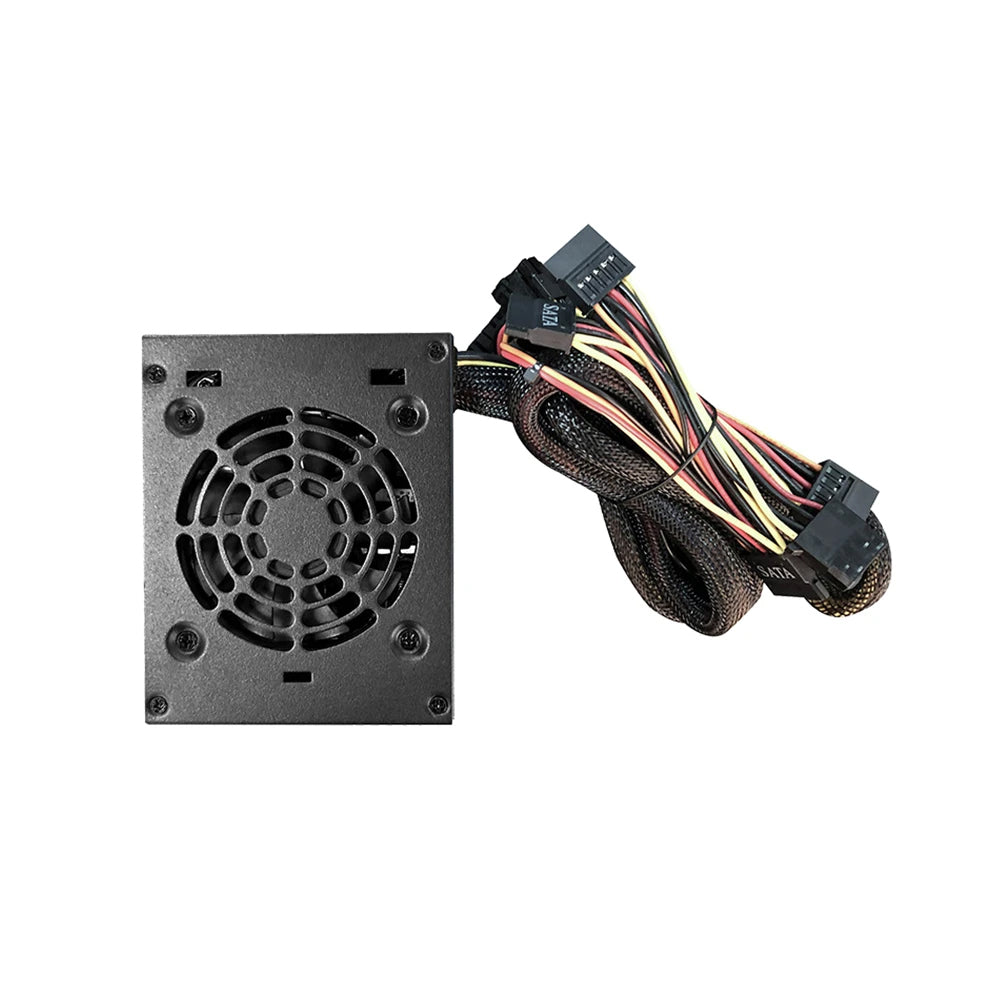

Flexible cables
Dimensions: 125x100x63.5mm
AC Input Specification
Input Voltage: 100 - 240Vac
Input Current: 6 - 4A
Input Frequency: 50 - 60Hz
Power Factor >0.9 at typical
Intel C6/C7 Sleep State Compatible
Hold-up Time: >16 ms @ typical load
DC Output Specification

Ability to Toggle Single/Multiple +12V: Single
+12V: 23.8A
+12V total power: 286W
+3.3V: 16A
+5V: 15A
+3.3V & +5V combined Power: 90W
+5Vsb: 2A
-12V: 0.3A
Regulatory:CE / CB / FCC / CTUVUS / CCC / BSMI
