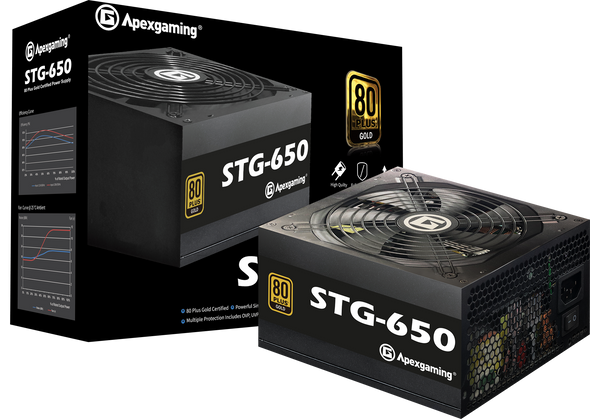

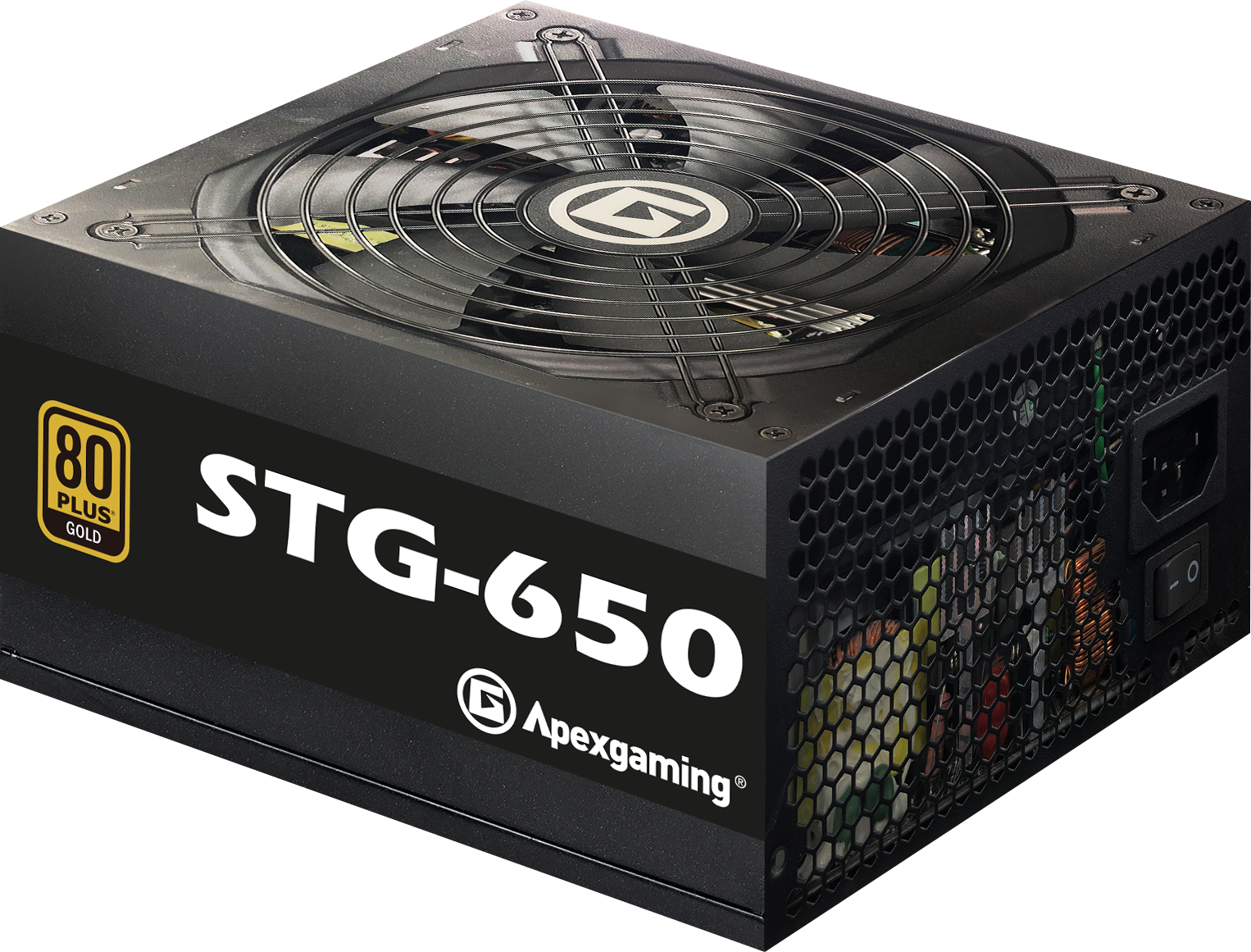

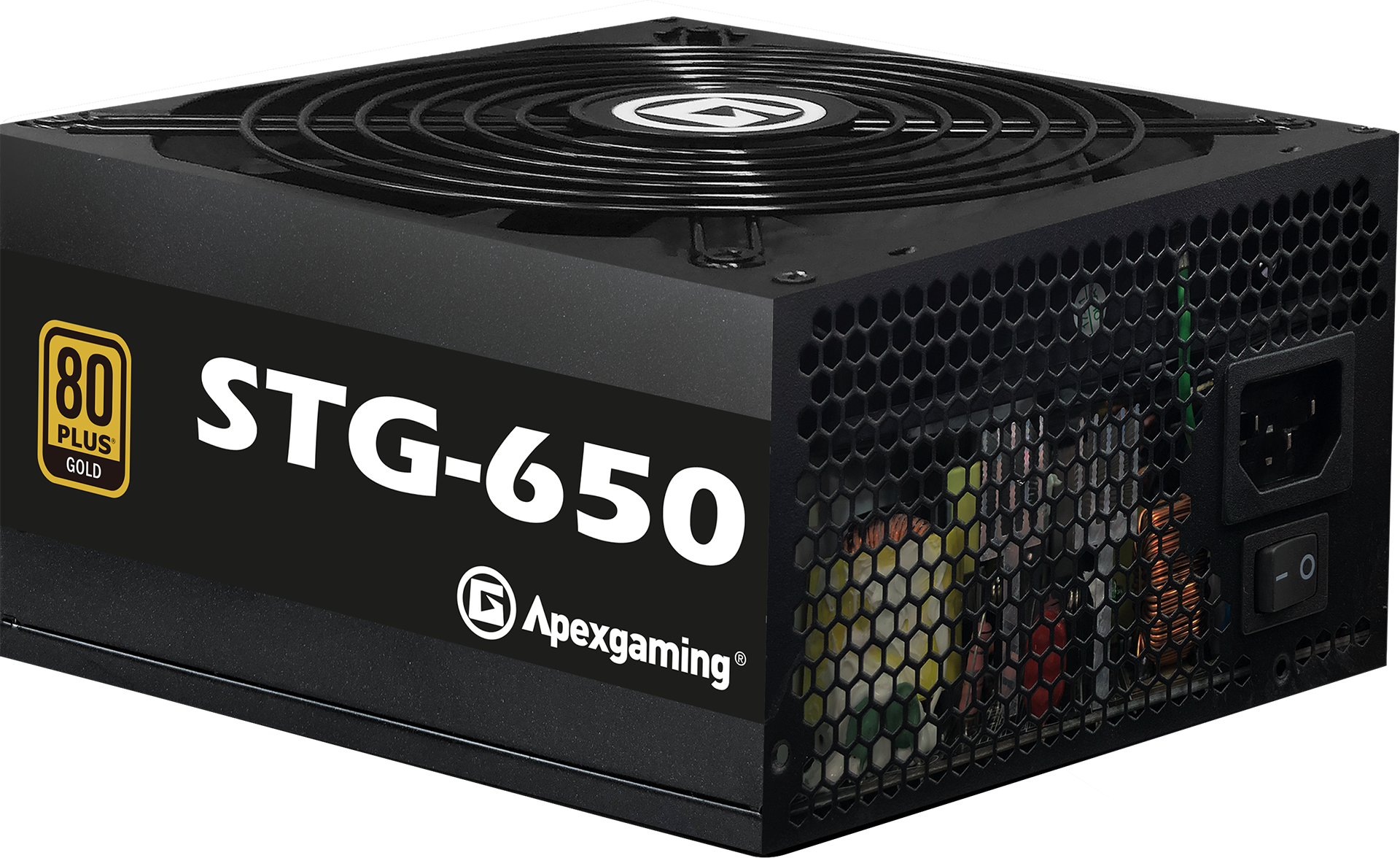

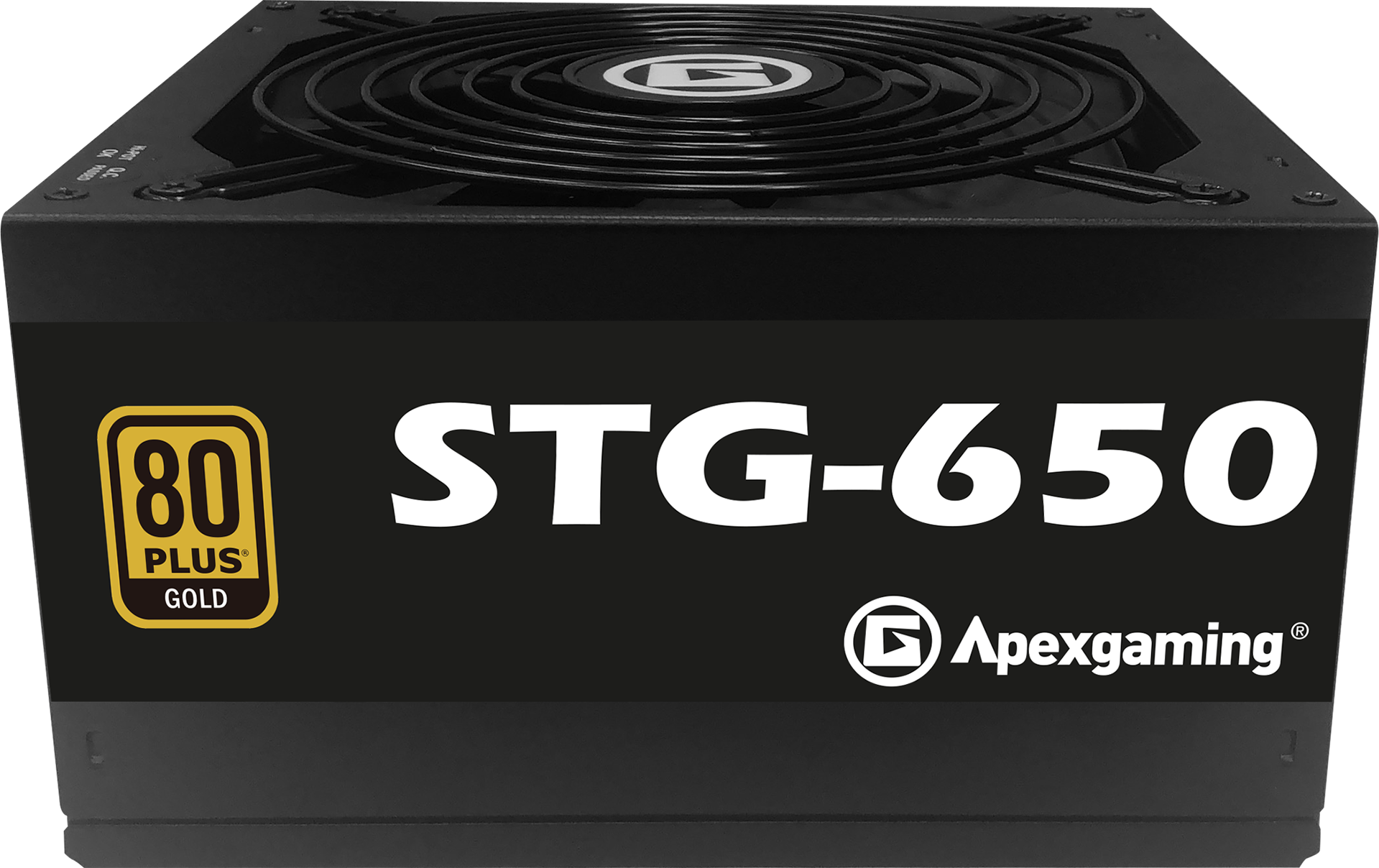

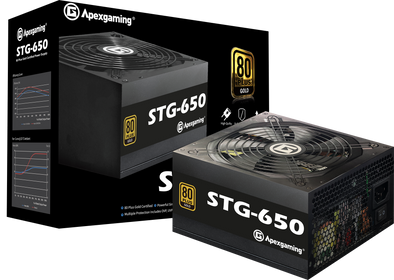

Apexgaming STG-650
- Built to deliver 80 PLUS Gold efficiency, and operation of 140mm silent Fan, <±3% tight voltage regulation, high quality 105°C/221°F main capacitors and premium components. Its near-silent operation, reliable performance are making itself one of the best values for basic system upgrades.
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/w1200_371a_06.png)
80 PLUS Gold Certified and
latest Intel 10th gen processors Ready
latest Intel 10th gen processors Ready
- Apexgaming STG-650 saves energy through its high efficiency up to 90% and is certified to 80 PLUS® Gold.
- The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/559c_0812info.jpg)

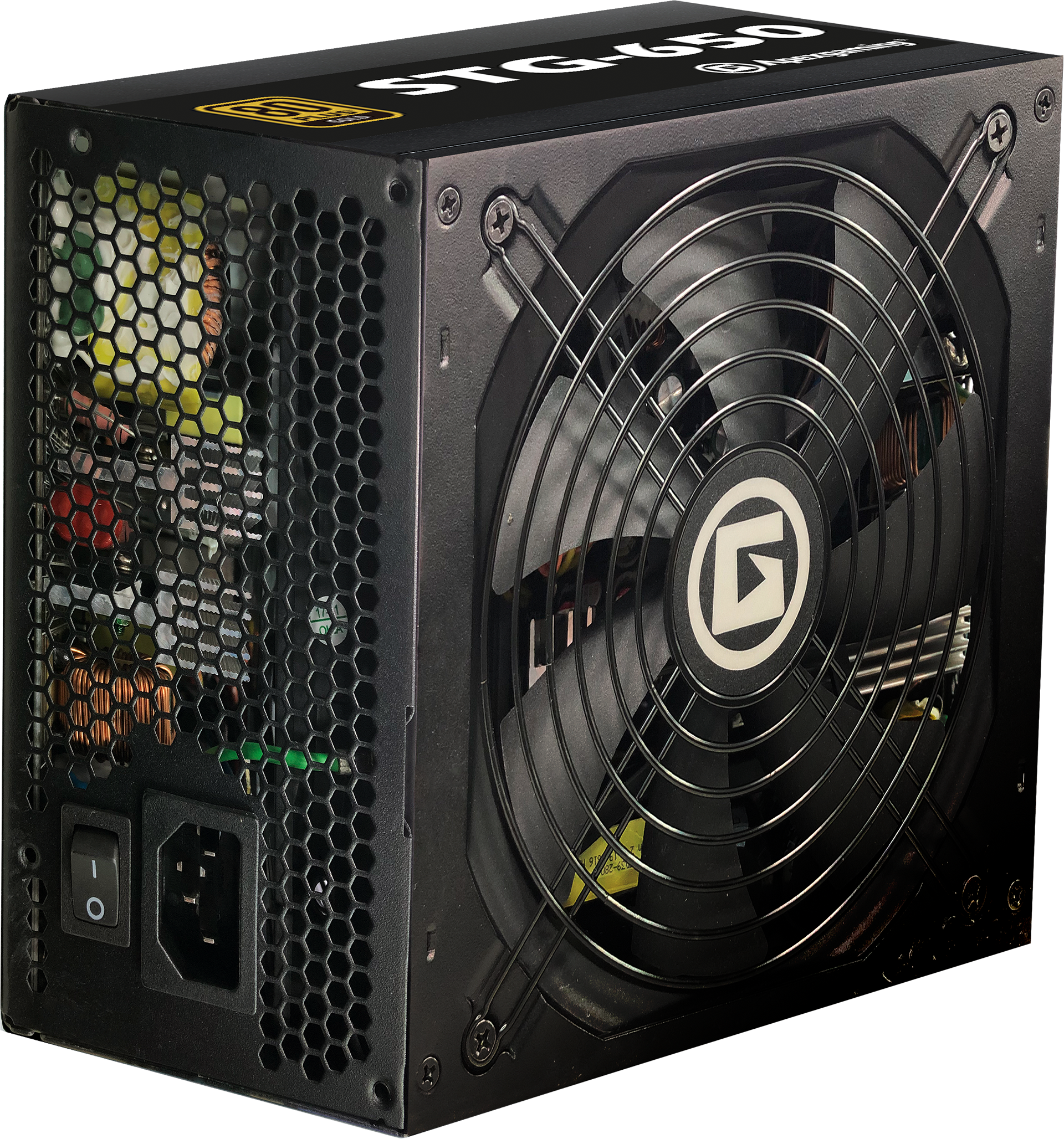

- Featuring a 140mm silent and low-speed fan to keep friction at really low levels even after prolonged usage while guaranteeing superior cooling performance and silent operation.
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/835d_0809-02.jpg)
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/133c_0809-03.jpg)
Low Ripple Noise
- The maximum ripple noise is lower than 60mV on the +12V rail, and lower than 40mV on the +5V &+3.3V rails to ensure an excellent power supply stability. Low ripple noise will keep your performance-critical components, such as high-end graphics cards, to operate reliably for longer.
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/w1200_f76e_0809-04.jpg)
<±3% Strict Voltage Regulation
- The voltage regulation of the PSU is set to no more than ±3% for major output rails to meet the highest performance. The strict voltage regulation is better than Intel’s ATX standard ±5% for major rails and ±10% for -12V.
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/w1200_dd12_0809-05.jpg)
Advanced Power Supply Design
- STG-650 has been implemented power supply design feature. All PCBA are connected by a copper plate without cables connection. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/w1200_3eba_0903.jpg)
High Quality 105°C/221°F
Electrolytic Capacitors
Electrolytic Capacitors
- Comes with high quality 105 °C (221 ° F) all electrolytic capacitors to greatly improve the durability and offer the highest stability and reliability
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/w1200_ce58_0809-07.jpg)
High Technology
Power Solution Design
Power Solution Design
- By using high technology LLC Control IC and SR IC from Monolithic Power Systems (MPS), they achieve zero switching loss for high efficiency and low standby power consumption.
High Amperage Single +12V Rail &
DC to DC Design
DC to DC Design
- Powerful single +12V rail and 5V/3.3V DC to DC design ensure a stable and reliable supply to the PC system and other PC components.
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/a691_0809-08.jpg)
![](https://cdn.gethypervisual.com/images/shopify/15ed0317-e956-471b-87c5-7e2f4f7016fc/dabd_Amazon_STG-650-04.jpg)
STG-650
Continuous Power: 650W
80 Plus Certification: Gold
ATX12V Version: 2.4
EPS12V Version: 2.92
Technology: LLC+D2D
MTBF: 100,000 Hours
Fan Size: 140mm
Fan Type: Sleeve
ErP 2013 lot6 compliant: Yes

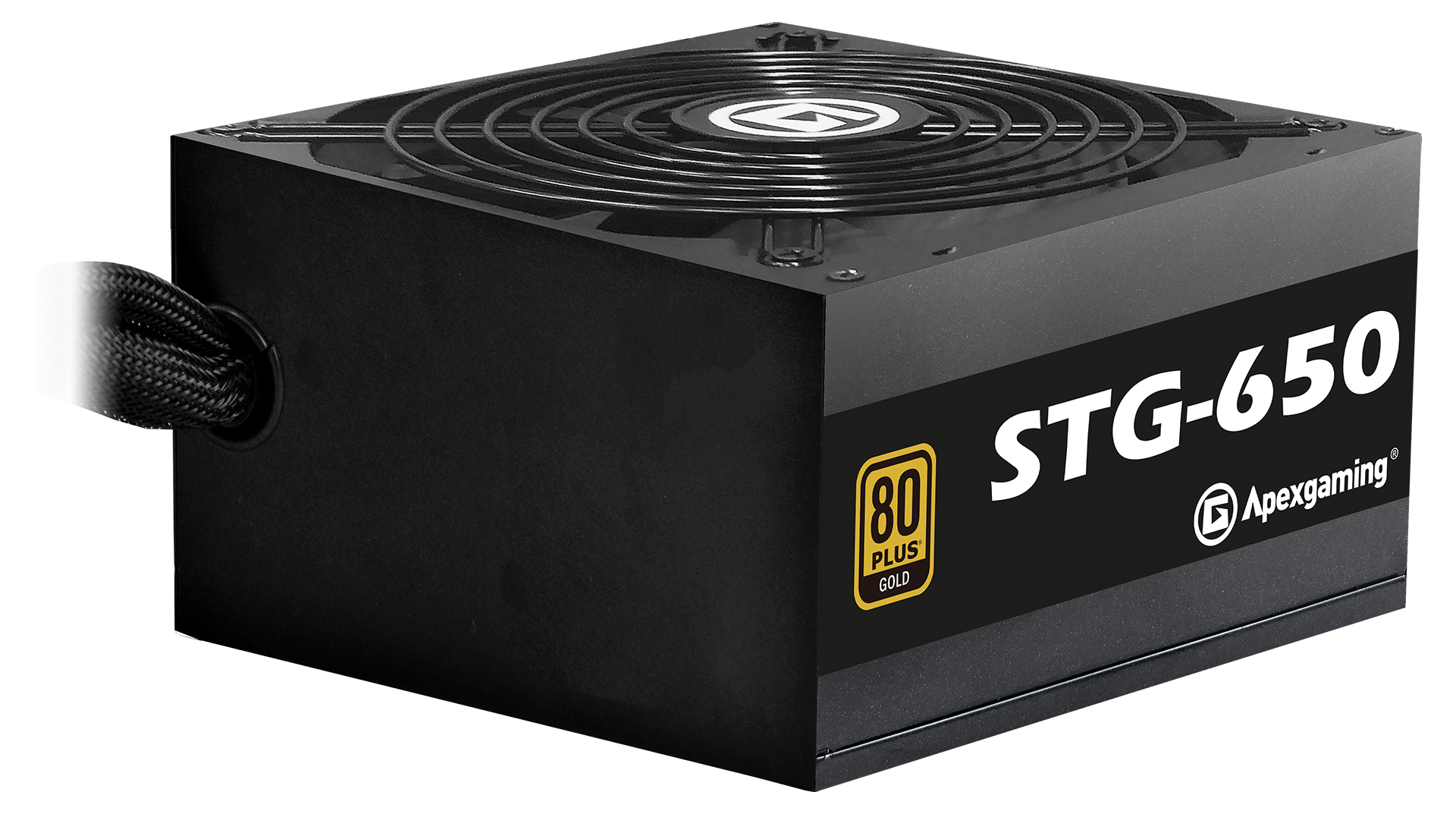

Flexible cables with sleeve design
Multi-GPU Ready
Flexible cables with sleeve design
Multi-GPU Ready
Dimensions: 160x150x86mm
AC Input Specification
Input Voltage: 100-240Vac
Input Current: 8-4A
Input Frequency: 47-63Hz
Power Factor>0.95 at typical
Intel C6/C7 Sleep State Compatible
Hold-up Time: >16 ms @ 80% load
Input Current: 8-4A
Input Frequency: 47-63Hz
Power Factor>0.95 at typical
Intel C6/C7 Sleep State Compatible
Hold-up Time: >16 ms @ 80% load
DC Output Specification
Ability to Toggle Single/Multiple +12V: Single
+12V: 54A
+12V total power: 648W
+3.3V: 20A
+5V: 20A
+3.3V & +5V Combined Power: 120W
+5Vsb: 3A
-12V: 0.5A
+12V: 54A
+12V total power: 648W
+3.3V: 20A
+5V: 20A
+3.3V & +5V Combined Power: 120W
+5Vsb: 3A
-12V: 0.5A
