Description
◆ Active PFC+ forward topology design: uses safety measures normally found in high-end power suppies to increase safety and current stability
◆ Higher Temperature Resistance: capable of operating at 40°C at full load for longer lifespan in hotter environments
◆ Peak Power Tolerance: up to 10 seconds, this PSU can reliably push 50W at peak power load
◆ 80 Plus Standard Certified - 80% efficient at 50% load
◆ ErP 2013 lot 6 compliant

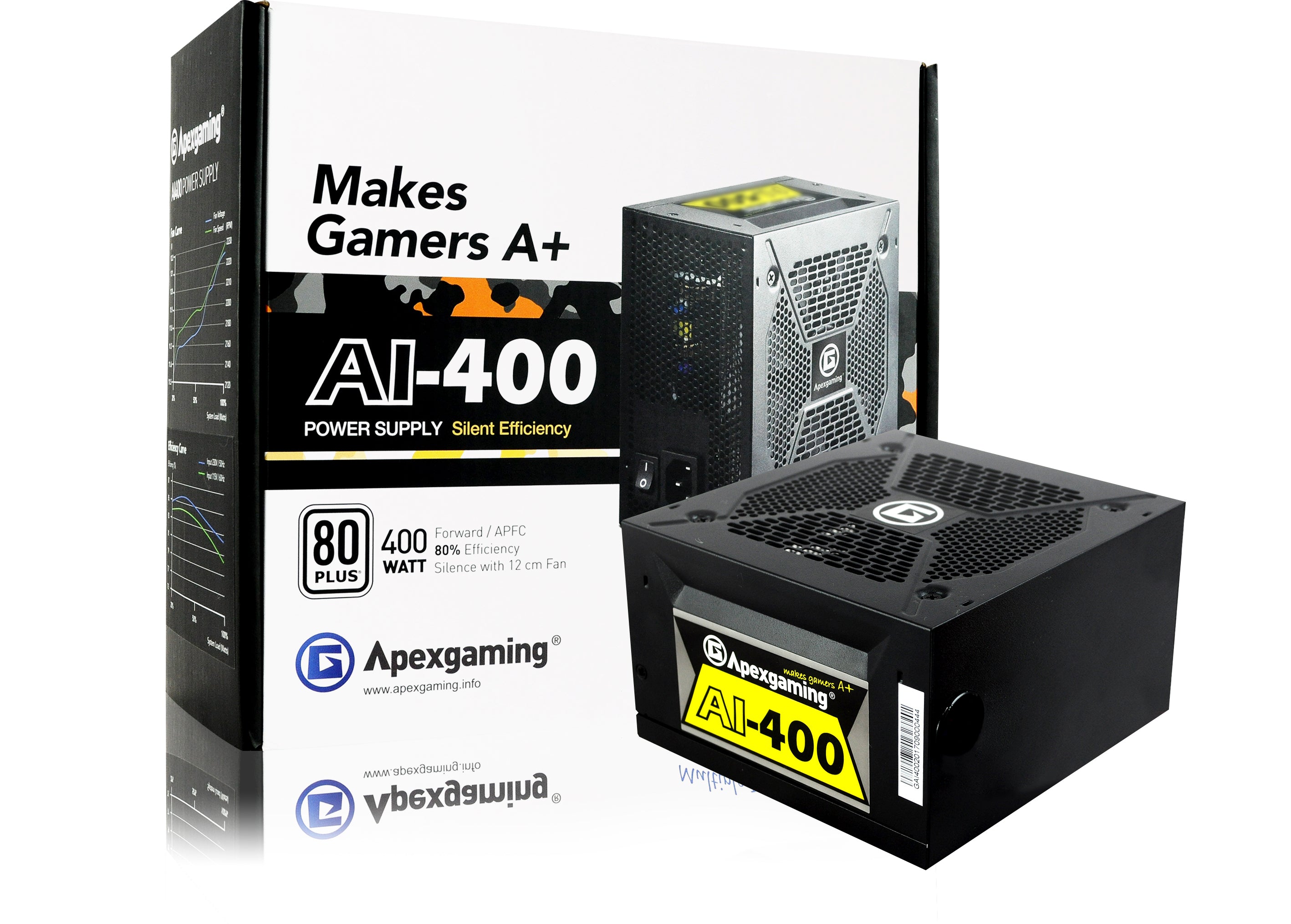

| Product Name |
AI-400 |
| Continuous power (W) |
400W |
| Peak power (W)* |
450W |
| 80 PLUS certification level |
Standard |
| ATX12V Version |
2.4 |
| EPS12V Version |
2.92 |
| Technology |
Active PFC+Single Forward |
| MTBF(Hours) |
100K |
|
|
| Fan Size (mm) |
120 |
| Fan Type |
Sleeve |
| Protections |
OVP,OCP,UVP,SCP,OTP,OPP |
| Safety certifications |
CE/CB/TUV/FCC/UL/cUL/
CCC/BSMI |
| Energy Star & ErP |
Yes |
| Cable management |
Non-modular |
|
|
|
|
| Dimensions |
140mm x 150mm x 86mm |
|
|
| AC Input Spec |
|
| Input Voltage (VAC) |
100 - 240V |
| Input Frequency (Hz) |
50 - 60Hz |
| Input current (A) |
6.3A - 3.15A |
| Active-PFC |
Yes |
| Intel C6/C7 sleep state compatible |
Yes |
|
|
|
|
| DC Output Specs |
|
| Ability to toggle single/multiple +12V |
Single |
| +12V (A) |
30A |
| +12V (W) |
360W |
| +3.3V (A) |
14A |
| +5V (A) |
14A |
| Max. combined power 3.3V + 5V (W) |
100W |
| +5Vsb (A) |
2.5A |
| -12V (A) |
0.3A |
| 12V DC voltage regulation (+-5 %) |
11.4~12.6v |
| +5V DC voltage regulation (+-5 %) |
4.75~5.25v |
| +3.3V DC voltage regulation (+-5 %) |
3.14~3.47v |
| -12V DC voltage regulation (+-10 %) |
10.80 ~ 13.2v |
| +5Vsb DC voltage regulation (+-5 %) |
4.75~5.25v |
| Ripple 12V |
<120mV |
| Ripple +5V |
<50mV |
| Ripple +3.3V |
<50mV |
| Ripple -12V |
<120mV |
| Ripple +5Vsb |
<50mV |
